Fast, flexible and practical mobile space solutions

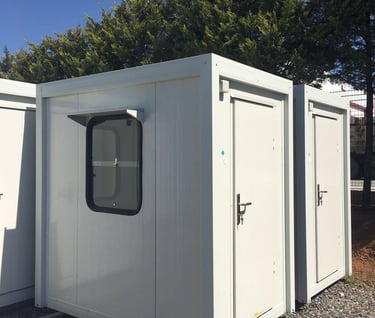

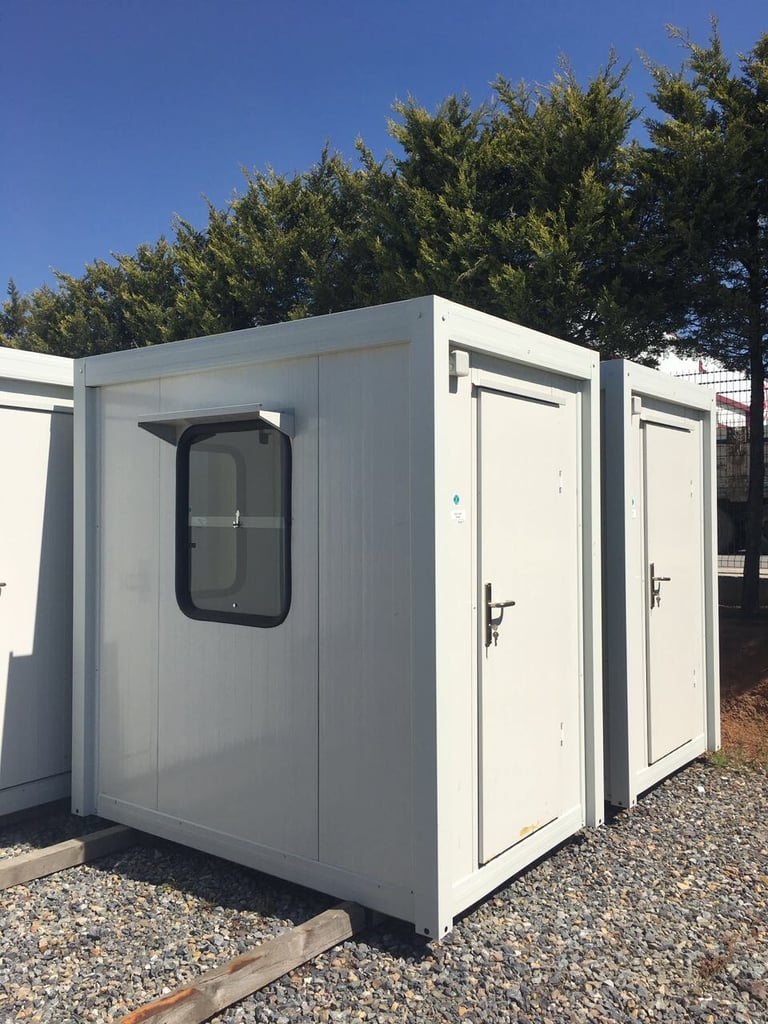

JCC GROUP – PREFABEX portable panel cabins are the right solution for urgent mobile space requirements. JCC GROUP – PREFABEX panel cabins are produced by using light steel galvanized profiles and insulated sandwich panels. The panel cabin is a great solution that can be used as security cabins, sales kiosks, parking lot booths, worksite security, mobile WC and shower units.

JCC GROUP – PREFABEX panel cabins come in wide range of dimensions and designs that meet different customers’ needs. Our standard range starts from 1.45 x 1.45 m and up to 2.7 x 2.7 m. You can choose also to customize the plan according to your specific requirements by adding partitions, WC/Shower unit, kitchenette, wider windows …etc. There are also many options that can be considered including shelves, counter desk with drawer, curtains, shutters and air conditioner.

Advantages of JCC GROUP – PREFABEX panel cabins:

• Demountable structures that allow maximum number to be shipped in one shipping container

• Easy assembly: one cabin can be assembled within two hours by two workers

• Comfortable with sound and heat insulation

• Economic price

• Mobile structure for easy transportation and relocation

• Possibility of producing some models as mobile toilets and showers

• Light weight yet strong structure

Modular panel cabins from JCC GROUP – PREFABEX are shipped with all parts included such as doors, windows, electric network, sanitary network and flooring.

Being fully produced within factory environment allows for strict control on quality, which reduces the possibility of defective products to zero level.

Technical data

Dimensions (cm):

145×145, 145×220, 145×270, 220×220, 220×270, 270×270

Height: 240 cm

Structure:

Modular construction with special formed painted galvanized steel profiles.

Walls:

Walls are produced as 5 cm thickness sandwich panels with external and internal surfaces from 0.5 mm thickness painted galvanized steel sheets, and insulated with EPS.

Insulation:

45 mm thickness and 16 kg/m³ density EPS (polystyrene foam).

Floor covering:

16 mm thickness cement board + 2 mm PVC vinyl.

Floor Load:

200 kg/m²

Roof:

Galvanized C and U sectioned cold formed profiles.

Ceiling covering:

PVC paneling.

Doors:

External door is aluminum profiles and EPS insulated sandwich panel.

Windows:

PVC framed with 4 mm thickness tempered glass.
